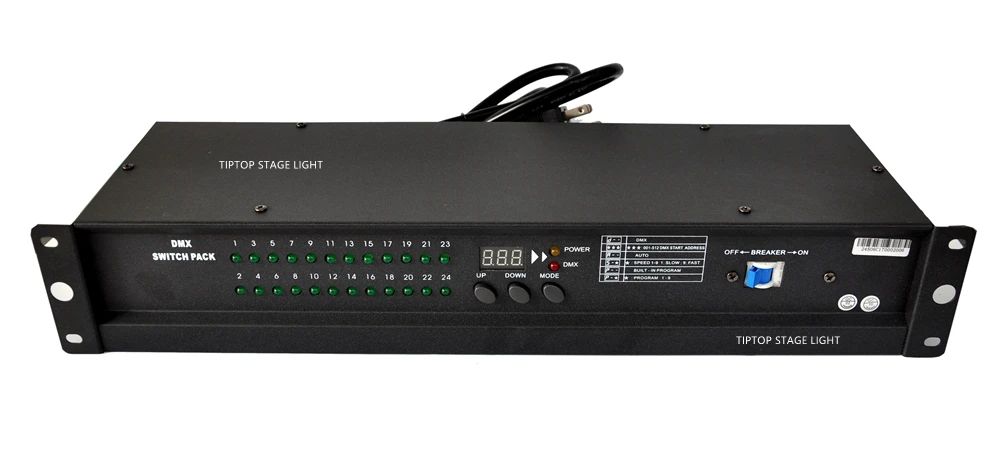

24CH DMX Power Switch Pack(TP-D1324)

24CH DMX Power Switch Pack(TP-D1324)

  • Description
  • Inquiry

Technical Parameter

 DMX512/1990 Standard
 24 channels switch output with Triac
 Switch output feature: DMX channel value
0-126=OFF, 127-255=ON
 Silicon bidirectional thyristors and zero-crossing
triggering
 LED indicators for each channel
 Over current protected with rapid fuse
 Channel output: 0.5A per channel, 12A total
 There are nine chase program inside and the
speed of these chase program can be selected

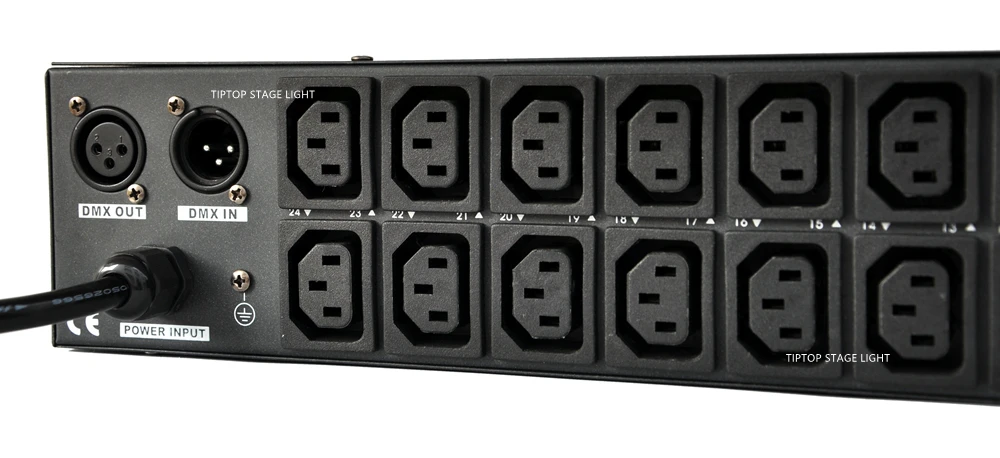

 DMX input connector: XLR-D3M
 DMX output connector: XLR-D3F
 Power supply: AC 88~256V 50/ 60Hz
 Dimension: 482mm×146mm×80mm
 Net Weight: 2.3kg
